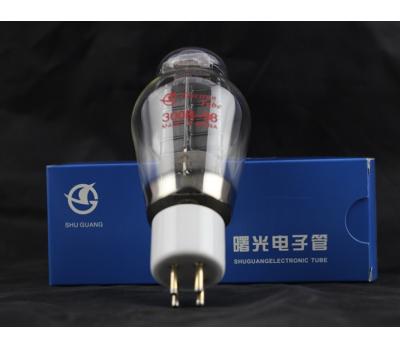

Triode: 300B-98 (300B)
DESCRIPTION
300B-98 is compatible with 300B
Vacuum tube 300B-98 is new and improved version of 300B. Direct heating cathode, medium power consumption triode is used for class A amplification. It is dedicated to be used in audio frequency range which requires the output power 100W.
300B-C long-life design, use pure graphite anode and its plate power dissipation can reach up to 60W. If the design parameters are adjusted properly, single tube can used as class A amplification, and can delivery the output power higher than 20W.
FEATURES
·Gold-plated grid and tube socket pins
|
SPECIFICATION
Filament Heating
Uf(DC)…………………5V
If(DC) ……………… 1.2A
Maximum Ratings
Plate voltage……………………480V
Plate dissipation power…………40W
Cathode current
Self-biasing voltage………………100mA
Fixed-biasing voltage………………70mA
Capacitances
Input capacitance……………………….9pF
Output capacitance……………………4.3pF
Muller capacitance………………….…15pF
DC Parameters
Ua……………… ………300V
-Ug………………………. 60V
Ia…………………………60mA
Gm……………………5.5mA/V
Ri…………………………700
u……………………….…3.85
Pout………………………6.6W
|
