FEATURES

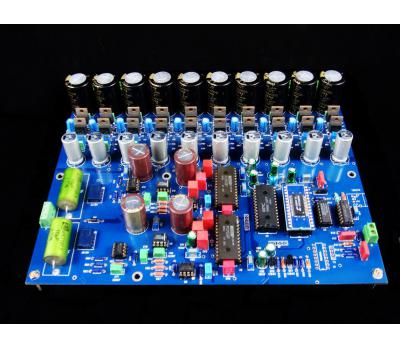

1. 24-bit 96kHz, 8X Oversampling, SNR: 120dB type, and THD: K grade = 0.0008% type.
2. This PCM1704 DAC module can use the ICs: CS8412, SM5813AP/DF1704E, PCM1704x2/PCM1702x2/PCM58Px2, NE5532x2, and NE5534x4
3. PCB thickness: 2mm and copper 2oz.
4. PCB dimension: 20cm x 24 cm
Input: coaxial S/PDIF or optical S/PDIF (optional TOTX179) or USB (optional PCM2704 module / PCM2706 kit)
Output: two single-ended RCA
Power requirement: 12VAC X4, 18VAC X2 and 20VAC X4
Optional: R-Core Transformer R50-PCM58 50W
Output power: 50W
Primary voltage: 115/230V 50-60Hz
Secondary voltage: 20V (0.6A) x2
15V(0.6A) x2
12V(0.6A)x1
