This EL34 SE V amplifier employs common pentode EL34 vacuum tubes for the class A amplification with 6SN7 / 6SL7 as the input stage. The 6SN7 tubes are configured as two cascading stages, the common-cathode and cathode follower, respectively. The output power can reach 10W for each channel.
FEATURES
· Tubes: EL34 x2 and 6SN7 / 6SL7 x2.
· Symmetrical layout design in signal paths for both channels.
· Dedicated ground and power rails layout design.
· Two large reservoir decoupling capacitors for power rails.

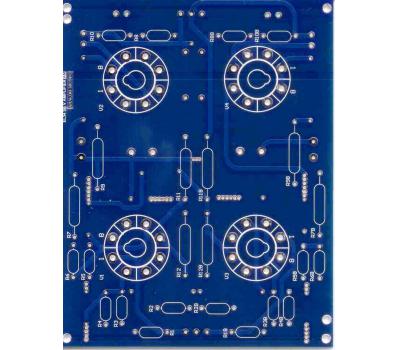

· PCB dimension: 130mm (W) x 165mm (L)
· PCB thickness: 2.4mm, double layer, 2oz copper.
Pre-Amplifiers
