INTRODUCTION

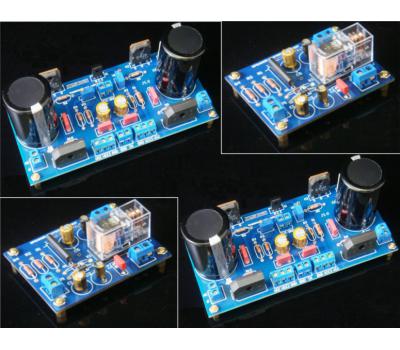

Passion 15 MKII mono block uses a complementary high power MOSFET 2SK1529 and 2SJ200 which is capable to deliver 100W average output power, 120W maximum. Two resistor trimmers can be used to adjust the biasing current so as to set either class AB amplification with unity gain, and also for output DC offset cancellation. Two mono block forms a high fidelity stereo with low linearity distortion and high dynamic. The output voltage exactly preserves the originality of the input voltage. Also, it requires either AC or DC input power with wide voltage ranges.
Features
1. Uses high power MOSFET transistor 2SK1529 and 2SJ200.
2. Average Output Power: 100W, maximum up to 120W
3. Support either AC power supply +/- 20 to +/-27V AC or DC power supply +/-24 to +/-38V DC
4. Unity gain and high linearity, class AB amplifier.
5. Two resistor trimmers can be used to adjust the biasing current and also cancel the output DC offset voltage.
6. High dynamic range and high output voltage headroom which depends on the voltage supply.
7. PCB dimension: 142 x 66 mm, double layers, thickness 2.4mm with 2oz copper.
SPECIFICATION
l Voltage gain: 0dB
l Gain flatness: <0.03dB for 20-20KHz
l Frequency range: 20-20KHz
l Bandwidth: >100kHz
l Input Impedance: 75K Ohms
l Output Impedance: 36 Ohms
l Input Sensitivity: 6V RMS
l S/N Ratio > 95dB and >106dB A-weighted at 1kHz
l THD+N < 0.1% @1KHz
l Mono single-end input and output
Option
1. Toroidal Power Transformer T140
2. Positive & Negative DC Voltage Regulator (5A) Kit
3. Heat Sink for Power Amplifier
