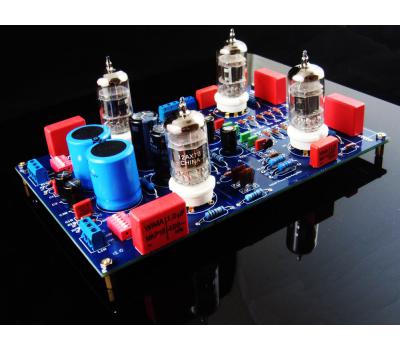

The circuit design is referenced to VTL phono tube preamplifier and the design values are optimized. It support both MM or MC phono input with RIAA compensation. It uses four 12AX7 vacuum tube in serial common-cathode configurations and buffer stage to provide sufficient voltage gain for weak phono input signal. The input impedance can be changed by the DIP switch. The signal paths of this PCB layout is designed in symmetry for both channels. Dedicated power rails, ground, and signal paths, althogether are taken into considerations so that all are to minimize the parasitics, cross interference, and influence of RFI.
FEATURES
· Four 12AX7 vacuum tubes.
· Support both MM and MC.
· RIAA compensation.
· Input impedance can be varied by DIP switch or modified resistances by advanced users.
· Two single-ended inputs and two single-ended outputs.
· Symmetric layout design and signal paths with minimum parasitic.
· Dedicated ground and power rails layout design.
· Four large reservoir decoupling capacitors for power rails.
· Power requirements: one 260V(100mA) DC and one 12.6V(2A) DC.
· PCB dimension: 20.2mm (W) x 13.6mm (L)
· PCB thickness: 2.4mm, double layer, 2oz copper.
Options
1. T30 Toroidal Power Transformer
2. HV400 BJT Variable Voltage Regulator Kit
